| Category |
Swing Motor Parts |
| Name |

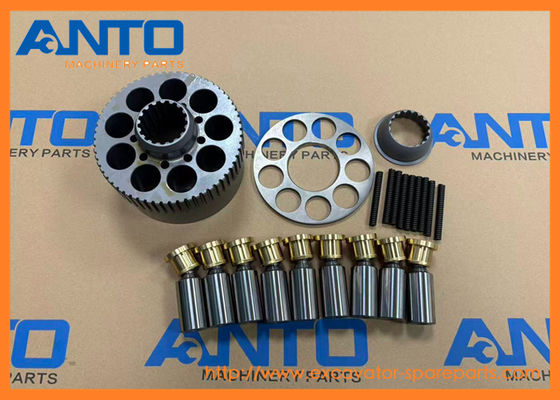

Rotary Kit |
| Parts No |
39Q6-11160 |
| Machine Number |
R110-7A R215LC7 R450LC7 R500LC7 R160W9A R170W9 |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
1.Restores Swing Performance: Replaces worn pinion gears, bearings, and seals to eliminate issues like jerky rotation, slow swing speed, or abnormal noise.
2.Prevents System Failure: Addresses wear before it leads to catastrophic damage (e.g., pinion gear failure causing swing jams or seal leaks leading to hydraulic system contamination).
3.Simplifies Maintenance: Bundles all essential parts for a swing drive overhaul, reducing downtime and ensuring consistent quality (vs. mixing aftermarket parts).
4.Ensures Safety: A properly functioning swing system (via kit installation) prevents unexpected movement of the upper structure, protecting operators and worksite personnel.
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R215LC7 R450LC7 R500LC7 RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R125LCR-9A R140LC9A R160LC9 R160LC9A R160LC9S R180LC9 R180LC9A R180LC9S R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R235LCR9A R250LC9 R250LC9A R260LC9S R480LC9 R480LC9A R480LC9S R520LC9 R520LC9A R520LC9S RB220LC9S RB260LC9S RD220LC9
9-SERIES WHEEL EXCAVATOR R160W9A R170W9 R180W9A R180W9S R210W-9 R210W9A R210W9AMH R210W9MH R210W9S
F-SERIES CRAWLER EXCAVATOR HX160L HX180L HX220L HX220NL HX235L HX260L HX480L HX520L
F-SERIES WHEEL EXCAVATOR HW210 Hyundai
- More other rotary kit applied to HYUNDAI heavey machine
| XKAY-00452 ROTARY KIT |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| |
| ZGAR-00271 ROTARY GROUP |
| R200W7 |
| |
| ZGAR-00282 ROTARY-HYD SECTION |
| R200W7 |
| |
| XJDD-00109 ROTARY GROUP |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| |
| XJDD-00121 ROTARY-HYD SECTION |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| |
| XKAY-00963 ROTARY KIT |
| R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S,... |
| |
| 39Q6-41260 ROTARY KIT |
| HX220L, HX220NL, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R300LC9SH, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| |
| 39Q7-41130 ROTARY KIT |
| HX235L, HX260L, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| |
| 39Q8-41250 ROTARY KIT |
| HX260L, HX300L, HX330L, HX430L, HX480L, HX520L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R430LC9, R430LC9A, R43... |
| |
| XKAY-02162 ROTARY KIT |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| |
| XKAY-01927 ROTARY KIT |
| HX160L, HX180L, R210LC9 |
| |
| XJDD-01125 ROTARY-HYD SECTION |
| R160W9A, R170W9, R180W9A |
| |
| XJDD-01124 ROTARY GROUP |
| R160W9A, R170W9, R180W9A |
| |
| XKAY-01124 ROTARY KIT |
| HX140L, HX160L, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, RB160LC9S |
| |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| *. |
38N4-10150 |
[1] |
SWING MOTOR ASSY |
HYMS |
| *-2. |
39N4-12100 |
[1] |
SWING REDUCTION GEAR |
SEE 4095 |
| *-1. |
38N4-11100 |
[1] |
SWING MOTOR |
|
| 1 |
39Q4-11110 |
[1] |
CASING |
|
| 2 |
39Q4-11120 |
[1] |
OIL SEAL |
|
| 3 |
39Q4-11130 |
[1] |
SHAFT |
|
| 4 |
39Q4-11140 |
[1] |
RING-SNAP |
|
| 5 |
39Q4-11150 |
[1] |
BEARING-ROLLER(R/GEAR) |
|
| 6 |
39Q4-11160 |
[1] |
BEARING-ROLLER(COVER) |
|
| 7 |
39Q4-11170 |
[1] |
SWASH PLATE |
|
| *-3. |
39Q6-11160 |
[1] |
ROTARY KIT |
|
| *-31. |
39Q6-11170 |
[1] |
CYLINDER BLOCK KIT |
|
| 8 |
39Q4-11200 |
[1] |
CYLINDER BLOCK |
|
| 9 |
39Q4-41230 |
[9] |
SPRING-CYLINDER |
|
| *-32. |
39Q6-11190 |
[1] |
RETAINER KIT |
|
| 10 |
39Q4-11220 |
[1] |
BALL GUIDE |
|
| 11 |
39Q4-11230 |
[1] |
RETAINER PLATE(SHOE) |
|
| 12 |
39Q4-11240 |
[9] |
PISTON ASSY |
|
| 13 |
39Q4-11270 |
[3] |
FRICTION PLATE |
|
| 14 |
39Q4-11280 |
[3] |
SEPARATE PLATE |
|
| 15 |
39Q4-11290 |
[1] |
PARKING PISTON |
|
| 16 |
39Q4-11300 |
[24] |
SPRING(PARKING PISTON) |
|
| 17 |
S471-600364 |
[1] |
PIN-SPRING |
|
| K18. |
Y172-036004 |
[2] |
O-RING |
|
| K19. |
Y172-034004 |
[1] |
O-RING |
|
| 20 |
39Q4-11310 |
[1] |
VALVE PLATE |
|
| 21 |
S471-600164 |
[2] |
PIN-SPRING |
|
| 22 |
39Q4-11320 |
[1] |
VALVE CASING |
|
| 23 |
39Q4-11330 |
[2] |
CHECK VALVE |
|
| 24 |
39Q4-11340 |
[2] |
SPRING(CHECK V/V) |
|
| 25 |
39Q4-11350 |
[2] |
PLUG |
|
| K26. |
31N8-19650 |
[2] |
O-RING |
|
| 27 |
39Q6-41750 |
[2] |
PLUG |
|
| K28. |
S631-011004 |
[2] |
O-RING |
|
| 29 |
39Q6-41780 |
[1] |
PLUG |
|
| K30. |
S631-008004 |
[1] |
O-RING |
|
| 31 |
39N4-11360 |
[2] |
RELIEF VALVE ASSY |
|
| 32 |
39Q6-11420 |
[2] |
REACTIONLESS VLV ASSY |
|
| 33 |
39Q4-11520 |
[2] |
PLUG |
|
| K34. |
S631-012004 |
[2] |
O-RING |
|
| K35. |
S631-018004 |
[2] |
O-RING |
|
| 36 |
39Q4-11380 |
[1] |
SPOOL(TIME DELAY V/V) |
|
| 37 |
39Q4-11390 |
[1] |
SEAT-SPRING(T/DELAY V/V) |
|
| 38 |
39Q4-11400 |
[1] |
SPRING (TIME DELAY V/V) |
|
| 37 |
39Q4-11410 |
[1] |
RESTRICTOR |
|
| K40. |
S631-020004 |
[1] |
O-RING |
|
| 41 |
39Q4-11421 |
[1] |
LEVEL GAUGE ASSY |
|
| 42 |
S109-140456 |
[4] |
BOLT-SOCKET |
|
| 43 |
P220-430202 |
[1] |
PLUG-HEX |
|
| 44 |
39Q4-11470 |
[2] |
EXPANDER |
|
| 45 |
39Q4-11480 |
[1] |
EXPANDER |
|
| 46 |
38N4-11490 |
[1] |
NAME PLATE |
|
| 47 |
39Q6-41800 |
[2] |
RIVET |
|
| K. |
39Q6-11660 |
[1] |
SEAL-OIL |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
