| Category |
Engine Parts |
| Name |

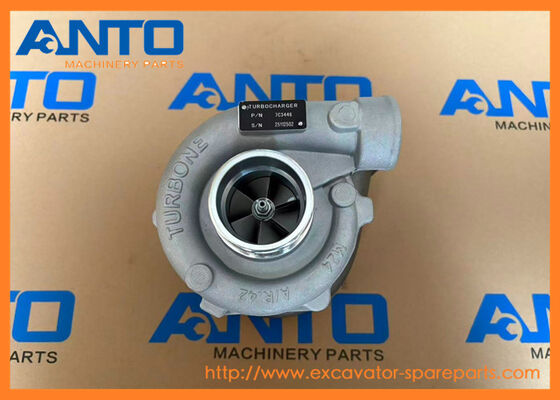

Turbocharger |
| Parts No |
7C-3446 7C3446 |
| Machine Number |
416C 426B 428B 436B 438B |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT |
| Packing |
As request or standard packing |
- Key functions & working principle
| Working Principle |
1. Exhaust Gas-Driven Rotation: Hot exhaust gas from the engine’s combustion chamber flows into the turbine housing, impacting the turbine wheel and causing it to spin at high speeds (up to 140,000 RPM). |
| 2. Air Compression: The turbine wheel is connected to a coaxial compressor wheel; as the turbine spins, it drives the compressor wheel to draw in ambient air and compress it to high density. |
| 3. Combustion Optimization: Compressed air is delivered to the engine’s intake manifold (after cooling in the intercooler, if equipped). The denser air allows more fuel to be injected and burned completely, significantly increasing engine power and torque. |
| 4. Continuous Cycle: As long as the engine runs, exhaust gas drives the turbocharger, creating a self-sustaining cycle of air compression and power enhancement. |
| Core Functions |
1. Power Enhancement: Increases the power output of CAT 3306/C15 engines by 25–35% compared to naturally aspirated versions, enabling heavy equipment to handle digging, lifting, and hauling tasks efficiently |
| 2. Fuel Efficiency Improvement: Optimizes fuel combustion by supplying sufficient oxygen, reducing fuel consumption by 8–12% under full load |
| 3. Altitude Compensation: Compensates for the low air density at high altitudes, preventing power loss in mountainous or plateau construction sites |
| 4. Emission Reduction: Promotes complete fuel combustion, lowering the emission of particulate matter (PM) and unburned hydrocarbons (HC) |
BACKHOE LOADER 416 416B 416C 426 426B 426C 428 428B 428C 436 436B 436C 438 438B 438C C.ate.rpillar.
- More other turbocharger applied to C A T heavey machine
| 2199773 TURBOCHARGER GP |
| 416C, 416D, 420D, 428C, 428D, 432D |
| |
| 1965477 TURBOCHARGER GP |
| 426C, 436C, 438C |
| |
| 6I1125 TURBOCHARGER GP |
| 416B, 416C, 426B, 426C, 428B, 428C, 436B, 436C, 438B, 438C |
| |
| 1490009 TURBOCHARGER GP |
| 426C, 430D, 436C, 438C, 438D, 442D |
| |
| 7C3465 TURBOCHARGER GP |
| 416, 426, 428, 436, 438 |
| |
| 1487184 TURBOCHARGER GP |
| 416C, 426C, 428C |
| |
| 1953866 TURBOCHARGER GP |
| 416C, 428C |
| |
| 1487183 TURBOCHARGER GP |
| 416C, 416D, 420D, 426C, 428C, 428D, 432D |
| |
| 1487148 TURBOCHARGER GP |
| 426C, 436C, 438C |
| |
| 1973872 TURBOCHARGER GP |
| 416C, 420D, 428C, 432D |
| |
| 2199772 TURBOCHARGER GP |
| 426C, 430D, 436C, 438C, 438D, 442D |
| |
| 1953865 TURBOCHARGER GP |
| 436C |
| |
| 3055970 TURBOCHARGER GP |
| 953D, D5R LGP, D6K, D6K LGP, D6K XL, D6N, PL61 |
| |
| 1461624 TURBOCHARGER GP |
| 3126B |
| |
| 2W1955 TURBOCHARGER GP |
| 950B, 950B/950E |
| |
| 1W8096 TURBOCHARGER GP |
| 3306, 3306B, D250B |
| |
| 2W3476 TURBOCHARGER GP |
| 3306, 3306B |
| |
| 7N7719 TURBOCHARGER GP |
| 3406, 3406B |
| |
| 4N6856 TURBOCHARGER GP |
| 120G, 130G, 225, 3304, 3408, 518, 950, D4D |
| |
| 8S4590 TURBOCHARGER GP |
| 3304, 950 |
| |
| 7W0595 TURBOCHARGER AR |
| 3508 |
| |
| 8S9237 TURBOCHARGER ASSEMBLY |
| 12F, 140, 14E, 814, 815, 816, 966C, D5, D6C |
| |
| 7E9668 TURBOCHARGER GP |
| 3606, 3612 |
| |
| 7E9676 TURBOCHARGER GP |
| 3606, 3612 |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1 |
5D-1026 |
[2] |
CLAMP-BAND |
|
| 2 |
6I-4012 M |
[4] |
STUD |
|
| 3 |
032-8048 |
[2] |
FERRULE |
|
| 4 |
032-8051 |
[1] |
NUT |
|
| 5 |
6I-0563 M |
[4] |
NUT (M10X1.5-THD) |
|
| 6 |
4B-4278 |
[2] |
WASHER (10.2X20.5X1.6-MM THK) |
|
| 7 |
6I-0789 M |
[1] |
BOLT (M10X1.5X60-MM) |
|
| 9 |
101-3909 |
[2] |
LOCKNUT (M5-THD) |
|
| 10 |
6I-0217 M |
[2] |
BOLT (M8X1.25X20-MM) |
|
| 11 |
6I-0220 |
[1] |
GASKET |
|
| 12 |
6I-0291 M |
[2] |
NUT (M8X1.25-THD) |
|
| 13 |
064-3058 |
[2] |
CLAMP-HOSE |
|
| 14 |
6I-1059 |
[2] |
STUD |
|
| 15 |
6I-1090 M |
[2] |
BOLT (M8X1.25X40-MM) |
|
| 16 |
216-6376 |
[1] |
TUBE AS |
|
| 17 |
100-4466 |
[1] |
GASKET |
|
| 18 |
199-2779 |
[1] |
HOSE |
|
| 19 |
105-2177 |
[1] |
TUBE |
|
| 20 |
6I-1130 |
[1] |
TUBE |
|
| 21 |
6I-1131 |
[1] |
CONNECTOR |
|
| 22 |
6I-1132 |
[1] |
GASKET |
|
| 23 |
101-3908 |
[2] |
BOLT |
|
| 24 |
7C-6988 |
[1] |
CLIP |
|
| 25 |
7C-3446 Y |
[1] |
TURBOCHARGER GP |
|
| 26 |
7C-3447 |
[1] |
HOSE-TURBOCHARGER |
|
| 28 |
7C-3455 |
[1] |
ELBOW |
|
| 29 |
7W-2581 |
[1] |
GASKET |
|
| 30 |
7W-2601 |
[4] |
SPACER (10.3X19X3.2-MM THK) |
|
| 31 |
7W-2628 |
[1] |
NUT |
|
| 32 |
7W-2634 |
[1] |
UNION |
|
| 33 |
111-6796 |
[2] |
CLIP |
|
| 34 |
8T-9022 |
[1] |
GASKET-SILICONE |
|
| |
|
|
|
|
| |
6I-0650 FM |
[1] |
BOLT (M10X1.5X65-MM) |
|
| |
F |
|
NOT SHOWN |
|
| |
M |
|
METRIC PART |
|
| |
R |
|
REMANUFACTURED PART MAY BE AVAILABLE |
|
| |
Y |
|
SEPARATE ILLUSTRATION |
|
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
