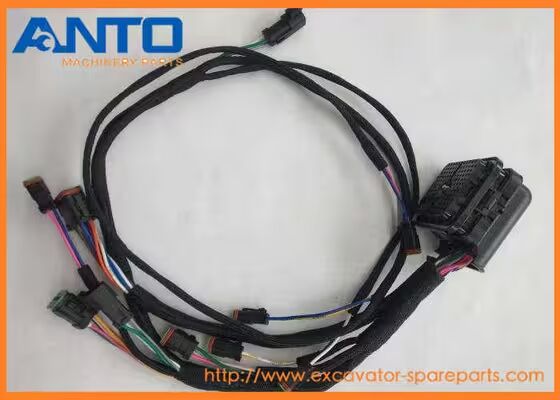

- 259-5069 2595069 Kabelboom Graafmachine Reserveonderdelen Geschikt voor C13 C-13 345C 345CL
| Naam |
Kabelboom |
| Onderdeelnummer |
259-5069 2595069 |
| Machine Model |
345C 345C L 345C MH |
| Motor Model |
C13 C-13 |
| Levertijd |
1-3 DAGEN |
| Kwaliteit |
Gloednieuw, OEM-kwaliteit |
| MOQ |
1 STUKS |
| Vervoermiddel |
Per zee/lucht, DHL FEDEX UPS TNT EMS |
| Verpakking |
Zoals gevraagd of standaard verpakking |
GRAAFMACHINE 345C 345C L 345C MH
SHOVEL LOGGER 345C
WHEELED EXCAVATOR W345C MH
- Meer andere kabelbomen onderdelen geschikt voor C A T machines
| 4190841 HARNESS AS-ENGINE |
| 140M, 140M 2, 160M, 160M 2, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D MH, 336D, 336D L, 336D LN, 336D2, 336D2 L, 340D L, 340D2 L, 511, 521, 521B, 522, 5... |
| |
| 2153249 HARNESS AS-ENGINE |
| 12H, 140M, 140M 2, 160M, 2290, 2390, 2391, 2491, 2590, 330C, 330C FM, 330C L, 330C MH, 330D, 330D FM, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 340D L, 511, 521, 521B, 522, 522B, 532, 541, 541 ... |
| |
| 2011283 HARNESS ASSEMBLY |
| 12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732 |
| |
| 2306279 HARNESS AS-ENGINE |
| 12H, 330C, 330C FM, 330C L, 330C MH, 627G, 637D, 637G, C-9, D6R II, MTC735, TK711, TK721, TK722, TK732, TK741, TK751, TK752 |
| |
| 2118002 HARNESS AS-WINDOW WIPER |
| 320C, 322C, 325C, 330C, 330C L |
| |
| 2183573 HARNESS AS-CHASSIS |
| 330C |
| |
| 2200920 HARNESS AS-BOX |
| 330C |
| |
| 2256266 HARNESS AS-SWITCH |
| 330C |
| |
| 2256265 HARNESS AS-PANEL |
| 330C |
| |
| 2335018 HARNESS AS |
| 330C |
| |
| 2041829 HARNESS AS |
| 330C L |
| |
| 2041830 HARNESS AS |
| 330C L |
- Catalogus onderdelenlijst
| Pos. |
Onderdeelnummer |
Aantal |
Onderdeelnaam |
Opmerkingen |
| 1 |
2G-1830 |
[1] |
RECEPTACLE AS (AUXILIARY START) |
|
| |
1S-7251 |
[2] |
TERMINAL-CABLE (00-GA, 1/2-IN SCREW) |
|
| |
5P-0747 E |
|
CABLE (00-GA, BLACK)(49-CM) |
|
| |
5P-0761 E |
|
CABLE (00-GA, RED)(56-CM) |
|
| 2 |
2G-8767 |
[5] |
WASHER (10.5X60X3-MM THK) |
|
| 3 |
3S-2093 C |
[33] |
STRAP-CABLE |
|
| 4 |
3T-5760 |
[4] |
BATTERY GP (12-VOLT, 750-CCA) |
|
| 5 |
4K-8864 |
[4] |
CLIP |
|
| 6 |
5I-8304 |
[2] |
ROD |
|
| 7 |
6W-6005 |
[2] |
HOLD-DOWN-BATTERY |
|
| 8 |
7I-2673 |
[4] |
STRAP-CABLE |
|
| 9 |
8N-0869 |
[1] |
COVER-TERMINAL (RED) |
|
| 10 |
8S-2634 |
[1] |
COVER AS |
|
| 11 |
9W-0742 Y |
[1] |
BLOCK GP-JUNCTION (BATTERY) |
|
| 12 |
087-4587 C |
[2] |
GROMMET (115-MM ID) |
|
| 13 |
111-4836 C |
[8] |
CLIP |
|
| 14 |
111-4837 |
[23] |
CLIP |
|
| 15 |
111-4838 |
[9] |
CLIP |
|
| 16 |
111-4839 |
[9] |
STRAP |
|
| 17 |
116-0118 |
[8] |
CLIP |
|
| 18 |
128-8886 |
[1] |
STRAP AS-GROUND |
|
| 19 |
170-9328 |
[1] |
STRAP AS-GROUND |
|
| 20 |
132-1820 |
[1] |
BRACKET AS |
|
| 21 |
132-1843 |
[2] |
BRACKET AS |
|
| 22 |
146-6747 |
[1] |
FILM-INFORMATION (24-VOLT) |
|
| 23 |
146-7112 |
[1] |
GROMMET |
|
| 24 |
170-6929 |
[2] |
CABLE AS |
|
| |
|
|
(ELK INCLUSIEF) |
|
| |
5P-0761 E |
|
CABLE (00-GA, RED)(31-CM) |
|
| |
9G-0002 |
[1] |
COVER AS-TERMINAL (RED) |
|
| |
9G-0005 |
[1] |
COVER AS-TERMINAL (BLACK) |
|
| |
8C-5918 |
[1] |
TERMINAL AS-BATTERY (NEGATIVE) |
|
| |
8T-9756 |
[1] |
TERMINAL AS-BATTERY (POSITIVE) |
|
| |
|
|
(ELKE TERMINAL AS INCLUSIEF) |
|
| |
1M-6119 |
[1] |
BOLT (5/16-18X1.375-IN) |
|
| |
1M-6120 |
[1] |
NUT (5/16-18-THD) |
|
| 25 |
170-6977 |
[1] |
BRACKET AS |
|
| 26 |
184-9159 C |
[1] |
GROMMET |
|
| 27 |
204-1673 |
[2] |
STRAP-CABLE |
|
| 28 |
231-1698 |
[1] |
CABLE AS |
|
| |
5P-0747 E |
|
CABLE (00-GA, BLACK)(25-CM) |
|
| |
1S-7252 |
[1] |
TERMINAL-CABLE (00-GA, 3/8-IN SCREW) |
|
| |
7N-5274 |
[1] |
COVER AS-TERMINAL (BLACK) |
|
| |
9G-8909 |
[1] |
COVER-TERMINAL (BLACK) |
|
| |
3S-6050 |
[1] |
TERMINAL AS-BATTERY (NEGATIVE) |
|
| |
1M-6119 |
[1] |
BOLT (5/16-18X1.375-IN) |
|
| |
1M-6120 |
[1] |
NUT (5/16-18-THD) |
|
| 29 |
231-1700 |
[1] |
CABLE AS |
|
| |
5P-0761 E |
|
CABLE (00-GA, RED)(399-CM) |
|
| |
1S-7251 |
[1] |
TERMINAL-CABLE (00-GA, 1/2-IN SCREW) |
|
| |
8N-1725 |
[1] |
COVER AS-TERMINAL (RED) |
|
| |
3S-6049 |
[1] |
TERMINAL AS-BATTERY (POSITIVE) |
|
| |
1M-6119 |
[1] |
BOLT (5/16-18X1.375-IN) |
|
| |
1M-6120 |
[1] |
NUT (5/16-18-THD) |
|
| 30 |
231-1709 |
[1] |
CABLE AS |
|
| |
5P-0761 E |
|
CABLE (00-GA, RED)(388-CM) |
|
| |
1S-7251 |
[2] |
TERMINAL-CABLE (00-GA, 1/2-IN SCREW) |
|
| |
8N-0869 |
[2] |
COVER-TERMINAL (RED) |
|
| 31 |
231-1710 |
[1] |
CABLE AS |
|
| |
5P-0761 E |
|
CABLE (00-GA, RED)(40-CM) |
|
| |
1S-7251 |
[1] |
TERMINAL-CABLE (00-GA, 1/2-IN SCREW) |
|
| |
8N-0869 |
[1] |
COVER-TERMINAL (RED) |
|
| |
8N-1725 |
[1] |
COVER AS-TERMINAL (RED) |
|
| |
3S-6049 |
[1] |
TERMINAL AS-BATTERY (POSITIVE) |
|
| |
1M-6119 |
[1] |
BOLT (5/16-18X1.375-IN) |
|
| |
1M-6120 |
[1] |
NUT (5/16-18-THD) |
|
| 32 |
231-1806 |
[1] |
BRACKET |
|
| 33 |
238-1485 |
[1] |
CABLE AS |
|
| |
5P-0747 E |
|
CABLE (00-GA, BLACK)(54-CM) |
|
| |
1S-7252 |
[1] |
TERMINAL-CABLE (00-GA, 3/8-IN SCREW) |
|
| |
7N-5274 |
[1] |
COVER AS-TERMINAL (BLACK) |
|
| |
3S-6050 |
[1] |
TERMINAL AS-BATTERY (NEGATIVE) |
|
| |
1M-6119 |
[1] |
BOLT (5/16-18X1.375-IN) |
|
| |
1M-6120 |
[1] |
NUT (5/16-18-THD) |
|
| 34 |
238-2535 |
[1] |
BRACKET AS |
|
| 35 |
251-0144 |
[1] |
HARNESS AS-WIRING (COUNTERWEIGHT) |
|
| |
243-4507 |
[1] |
RECEPTACLE AS-CONNECTOR (4-PIN) |
|
| 36 |
259-4937 C |
[1] |
HARNESS AS-CHASSIS |
|
| |
102-8802 |
[3] |
KIT-RECEPTACLE (2-PIN) |
|
| |
|
|
(ELK INCLUSIEF RECEPTACLE AS & WEDGE) |
|
| |
155-2270 |
[4] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
|
|
(ELK INCLUSIEF PLUG AS, WEDGE & INTERFACE SEAL) |
|
| |
243-4510 |
[1] |
RECEPTACLE AS-CONNECTOR (12-PIN) |
|
| 37 |
259-5068 C |
[1] |
HARNESS AS-CHASSIS |
|
| |
8T-8827 |
|
BOOT (RED) |
|
| |
102-8802 |
[4] |
KIT-RECEPTACLE (2-PIN) |
|
| |
|
|
(ELK INCLUSIEF RECEPTACLE AS & WEDGE) |
|
| |
102-8803 |
[1] |
KIT-RECEPTACLE (3-PIN) |
|
| |
102-8804 |
[1] |
KIT-RECEPTACLE (4-PIN) |
|
| |
176-9299 |
[1] |
KIT-RECEPTACLE (3-PIN) |
|
| |
|
|
(ELKE RECEPTACLE KIT INCLUSIEF RECEPTACLE AS & WEDGE) |
|
| |
155-2270 |
[11] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
|
|
(ELK INCLUSIEF PLUG AS, WEDGE & INTERFACE SEAL) |
|
| |
1155-2271 |
[1] |
KIT-CONNECTING PLUG (4-PIN) |
|
| |
155-2260 |
[1] |
KIT-CONNECTING PLUG (3-PIN) |
|
| |
|
|
(ELKE PLUG KIT INCLUSIEF PLUG AS, WEDGE & INTERFACE SEAL) |
|
| |
153-2620 |
[1] |
PLUG AS-CONNECTOR (54-PIN, BLACK) |
|
| |
163-6759 |
[1] |
SEAL |
|
| |
153-2630 |
[1] |
PLUG AS-CONNECTOR (54-PIN, BROWN) |
|
| |
163-6759 |
[1] |
SEAL |
|
| |
127-5485 |
[1] |
PLUG AS-CONNECTOR (1-PIN) |
|
| |
174-3016 |
[1] |
PLUG AS-CONNECTOR (3-PIN) |
|
| |
230-4009 |
[1] |
PLUG AS-CONNECTOR (12-PIN) |
|
| |
230-4011 |
[6] |
PLUG AS-CONNECTOR (2-PIN) |
|
| |
230-5008 |
[1] |
PLUG AS-CONNECTOR (4-PIN) |
|
| |
230-5010 |
[3] |
PLUG AS-CONNECTOR (6-PIN) |
|
| |
231-2295 |
[1] |
PLUG AS-CONNECTOR (8-PIN) |
|
| |
230-4013 |
[1] |
PLUG AS-CONNECTOR (3-PIN) |
|
| |
127-5484 |
[1] |
RECEPTACLE AS-CONNECTOR (1-PIN) |
|
| |
163-6637 |
[1] |
RECEPTACLE AS-CONNECTOR (54-PIN, BLACK) |
|
| |
243-4505 |
[4] |
RECEPTACLE AS-CONNECTOR (2-PIN) |
|
| |
243-4506 |
[1] |
RECEPTACLE AS-CONNECTOR (3-PIN) |
|
| |
243-4508 |
[3] |
RECEPTACLE AS-CONNECTOR (6-PIN) |
|
| |
243-4509 |
[2] |
RECEPTACLE AS-CONNECTOR (8-PIN) |
|
| 38 |
259-5069 C |
[1] |
HARNESS AS-ENGINE |
|
| |
3S-2093 |
[2] |
STRAP-CABLE |
|
| |
127-5486 |
[1] |
RECEPTACLE AS-CONNECTOR (1-PIN) |
|
| |
243-4509 |
[1] |
RECEPTACLE AS-CONNECTOR (8-PIN) |
|
| |
127-5483 |
[1] |
PLUG AS-CONNECTOR (1-PIN) |
|
| |
231-2295 |
[1] |
PLUG AS-CONNECTOR (8-PIN) |
|
| |
160-7689 |
[1] |
PLUG AS-CONNECTOR (70-PIN) |
|
| |
159-9322 |
[1] |
SEAL-O-RING |
|
| |
155-2270 |
[2] |
KIT-CONNECTING PLUG (2-PIN) |
|
| |
|
|
(ELK INCLUSIEF PLUG AS, WEDGE & INTERFACE SEAL) |
|
| 39 |
133-4419 |
[1] |
GROMMET |
|
| 40 |
148-5018 |
[1] |
GROMMET |
|
| 41 |
4I-5106 |
[1] |
GROMMET |
|
| 42 |
5C-7261 M |
[2] |
NUT (M8X1.25-THD) |
|
| 43 |
5C-9553 M |
[4] |
BOLT (M6X1X16-MM) |
|
| 44 |
5P-4115 |
[4] |
WASHER-HARD (7.2X19X2-MM THK) |
|
| 45 |
6G-2256 |
[4] |
CLAMP |
|
| 46 |
6G-2263 |
[4] |
SPACER (10.5X19X28.5-MM THK) |
|
| 47 |
6V-5683 M |
[4] |
BOLT (M6X1X16-MM) |
|
| 48 |
8T-4121 C |
[59] |
WASHER-HARD (11X21X2.5-MM THK) |
|
| 49 |
8T-4133 M |
[2] |
NUT (M10X1.5-THD) |
|
| 50 |
8T-4136 M |
[6] |
BOLT (M10X1.5X25-MM) |
|
| 51 |
8T-4137 CM |
[40] |
BOLT (M10X1.5X20-MM) |
|
| 52 |
8T-4185 M |
[4] |
BOLT (M10X1.5X50-MM) |
|
| 53 |
8T-4186 M |
[1] |
BOLT (M10X1.5X40-MM) |
|
| 54 |
8T-4191 M |
[5] |
BOLT (M10X1.5X16-MM) |
|
| 55 |
8T-4195 M |
[7] |
BOLT (M10X1.5X30-MM) |
|
| 56 |
8T-4226 |
[2] |
WASHER-PLATED (10.5X45X3-MM THK) |
|
| 57 |
9X-8256 |
[4] |
WASHER (6.6X12X2-MM THK) |
|
| |
C |
|
WIJZIGING VAN VORIG TYPE |
|
| |
E |
|
BESTELLEN PER CENTIMETER |
|
| |
M |
|
METRISCH ONDERDEEL |
|
| |
Y |
|
AFZONDERLIJKE ILLUSTRATIE |
|
- Wij kunnen de volgende reserveonderdelen leveren
1 Hydraulische onderdelen: hydraulische pomp, hoofdklep, hydraulische cilinder, eindaandrijving, rijmotor, zwenkmachinerie, zwenkmotor etc.
2 Motoronderdelen: motorblok, zuiger, zuigerveer, cilinderblok, cilinderkop, krukas, turbocharger, brandstofinjectiepomp, startmotor en dynamo etc.
3 Onderstelonderdelen: Rupsrol, Draagrol, Rupsschakel, Rupsplaat, Tandwiel, Spanschoen en Spanschoenkussen etc.
4 Cabineonderdelen: bestuurderscabine, kabelboom, monitor, controller, stoel, deur etc.
5 Koelonderdelen: Radiator, airconditioner, compressor, nakoeler etc.
6 Overige onderdelen: Servicekit, zwenkring, motorkap, zwenkkoppeling, brandstoftank, filter, giek, arm, bak etc.
1. Bied topkwaliteit & concurrerende producten aan
2. Ondersteuning 12 maanden garantie
3. 100% getest voor verzending
4. Levering op tijd
5. Een breed scala aan oliedruksensoren, brandstoftanksensoren, temperatuursensoren, snelheidsensoren voor graafmachines
6. Meer dan 15 jaar productie- en 11 jaar buitenlandse handelservaring
7. Professioneel QC-team
8. Beste verkoopteam, 24 uur service
Verpakkingsdetails :
binnenverpakking: plastic folie voor wikkelen
buitenverpakking: hout
Verzending :
binnen 3 dagen na ontvangst van de betaling, per lucht of per express of per zee op basis van de
hoeveelheid en noodsituaties.
1. Per koerier: DHL, UPS, FEDEX, TNT zijn de belangrijkste koeriersbedrijven waarmee we samenwerken,
2. Per lucht: Levering vanaf de luchthaven van Guangzhou naar de luchthaven van de bestemmingsstad van de klant.
3. Per zee: Levering vanaf de haven van Huangpu.
