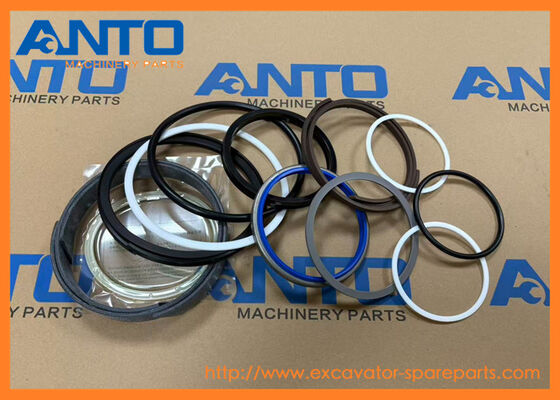

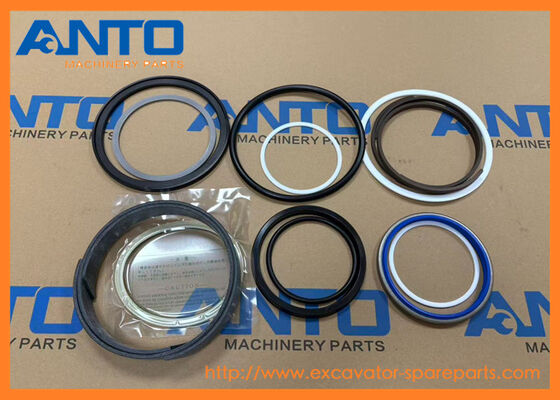

- VOE14589145 14589145 Seal Kit Excavator Bucket Cylinder Parts Fit For EC460C EC480D
| Appliion |
Mini Hydraulic Excavator |
| Name |
Seal Kit |
| Parts No |
14589145 |
| Machine Model |
EC460B EC460C EC460CHR EC480D EC480DHR EC480E PL4809D |
| Category |
Bucket Hydraulic Cylinder |
| Lead time |
1-3 DAYS |
| Quality |
Brand new, OEM quality |
| MOQ |
1 PCS |
| Means of transport |
By sea/air, DHL FEDEX UPS TNT EMS |
| Packing |
As request or standard packing |
These seals prevent hydraulic oil leakage and keep dust, water and dirt out of hydraulic assemblies. It is a common wear part. Replacing the seal kit regularly can avoid oil leaks and extend the service life of the whole unit.
EXCAVATOR EC460B EC460C EC460CHR EC480D EC480DHR EC480E PL4809D
- More other kit fit for V O L V O machine
| VOE20538793 Sealing strip |
| A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40G, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR, L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250... |
| |
| VOE1675066 Sealing ring |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, A35D, A35E, A35E FS, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40D, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS,... |
| |
| VOE21123014 Sealing strip |
| A35D, A35E, A35E FS, A40D, EC330B, EC330C, EC360B, EC360C, EC360CHR, EC460B, EC460C, EC460CHR, L150E, L150F, L180E, L180F, L180F HL, L220E, L220F, PL4608, PL4611, T450D |
| |
| VOE21532258 Sealing ring |
| A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40G, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR, L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250... |
| |
| VOE21293367 Sealing strip |
| A35F/G, A35F/G FS, A35G, A40G, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR, L150G, L150H, L180G, L180G HL, L180H, L180H HL, L220G, L220H, L250G, L250H, PL4809E |
| |
| VOE20430678 Sealing ring |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40G, EC340D, EC350E, EC380D, EC380DHR, EC380E, EC380EHR, EC480D, EC480DHR, EC480E, EC480EHR |
| |
| VOE14589140 Sealing kit |
| EC330B, EC330C, EC340D, EC360B, EC360C, EC360CHR, EC380D, EC460B, EC460C, EC460CHR, EC480D, EC480DHR, EC480E |
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14523673 |
[1] |
Bucket cylinder |
SER NO 11515-12094 SER NO 80001-80626 |
| |
VOE14559350 |
[1] |
Bucket cylinder |
SER NO 12095-12214 SER NO 80627-80639 |
| |
VOE14572137 |
[1] |
Cylinder |
SER NO 12215- SER NO 80640- |
| 1 |
VOE14524665 |
[1] |
Washer |
SER NO 10001-12214 SER NO 80001-80639 |
| |
VOE14530666 |
[1] |
Washer |
SER NO 12215- SER NO 80640- |
| 2 |
VOE14524063 |
[1] |
Cushion |
|
| 3 |
SA1146-05880 |
[1] |
Lock nut |
|
| 4 |
|
[1] |
Head |
|
| 5 |
SA1146-06870 |
[1] |
Pad |
|
| 6 |
SA1146-08140 |
[1] |
Seal |
|
| 7 |
|
[1] |
Tube |
|
| 8 |
VOE14560209 |
[2] |
Seal |
|
| 9 |
SA9651-20100 |
[1] |
Bushing |
|
| 10 |
VOE14524060 |
[1] |
Rod |
SER NO 11515-12094 SER NO 80001-80626 |
| |
VOE14559467 |
[1] |
Rod |
SER NO 12095-12214 SER NO 80627-80639 |
| |
VOE14571039 |
[1] |
Rod |
SER NO 12215- SER NO 80640- |
| 11 |
VOE14560211 |
[2] |
Seal |
|
| 12 |
SA9481-11003 |
[1] |
Nipple |
|
| 13 |
VOE14515349 |
[1] |
Bushing |
|
| 14 |
SA9612-11050 |
[1] |
Bearing |
|
| 15 |
VOE14512072 |
[1] |
Seal |
|
| 16 |
SA9565-11651 |
[2] |
Wear ring |
SER NO 11515-12214 SER NO 80001-80639 |
| |
VOE14570905 |
[2] |
Wear ring |
SER NO 12215- SER NO 80640- |
| 17 |
SA9568-01650 |
[2] |
Seal |
|
| 18 |
|
[1] |
Piston |
|
| 19 |
VOE947695 |
[13] |
Hex. socket screw |
|
| 20 |
VOE13963059 |
[1] |
Set screw |
SER NO 11515-12214 SER NO 80001-80639 |
| |
VOE14535763 |
[1] |
Screw |
SER NO 12215- SER NO 80640- |
| 21 |
SA1046-05730 |
[1] |
O-ring |
|
| 22 |
VOE990594 |
[1] |
O-ring |
|
| 23 |
SA9557-11000 |
[1] |
Retaining ring |
|
| 24 |
SA9557-10000 |
[1] |
Retaining ring |
|
| 25 |
SA9563-21100 |
[1] |
Seal |
|
| 26 |
SA9564-21100 |
[1] |
Seal |
|
| 27 |
SA9566-31501 |
[1] |
Back-up ring |
|
| 28 |
SA9566-40900 |
[2] |
Back-up ring |
SER NO 11515-12214 SER NO 80001-80639 |
| |
VOE14880846 |
[2] |
Back-up ring |
SER NO 12215- SER NO 80640- |
| 29 |
SA9567-21100 |
[1] |
Back-up ring |
|
| 100 |
VOE14589145 |
[1] |
Sealing kit |
SER NO 11515-12214 SER NO 80001-80639 |
| |
VOE14589145 |
[1] |
Sealing kit |
SER NO 12215- SER NO 80640- |
